Maximum efficiency, minimal crop damage! 35HP Ride-on Cultivator!
H35CT Riding type Cultivator


Maximum efficiency, minimal crop damage!

35HP Ride-on Cultivator!

H35CT Riding type Cultivator

Catalog

Large Capacity Tank

(600L) Standard Equipped

Left : 300L
Right : 300L

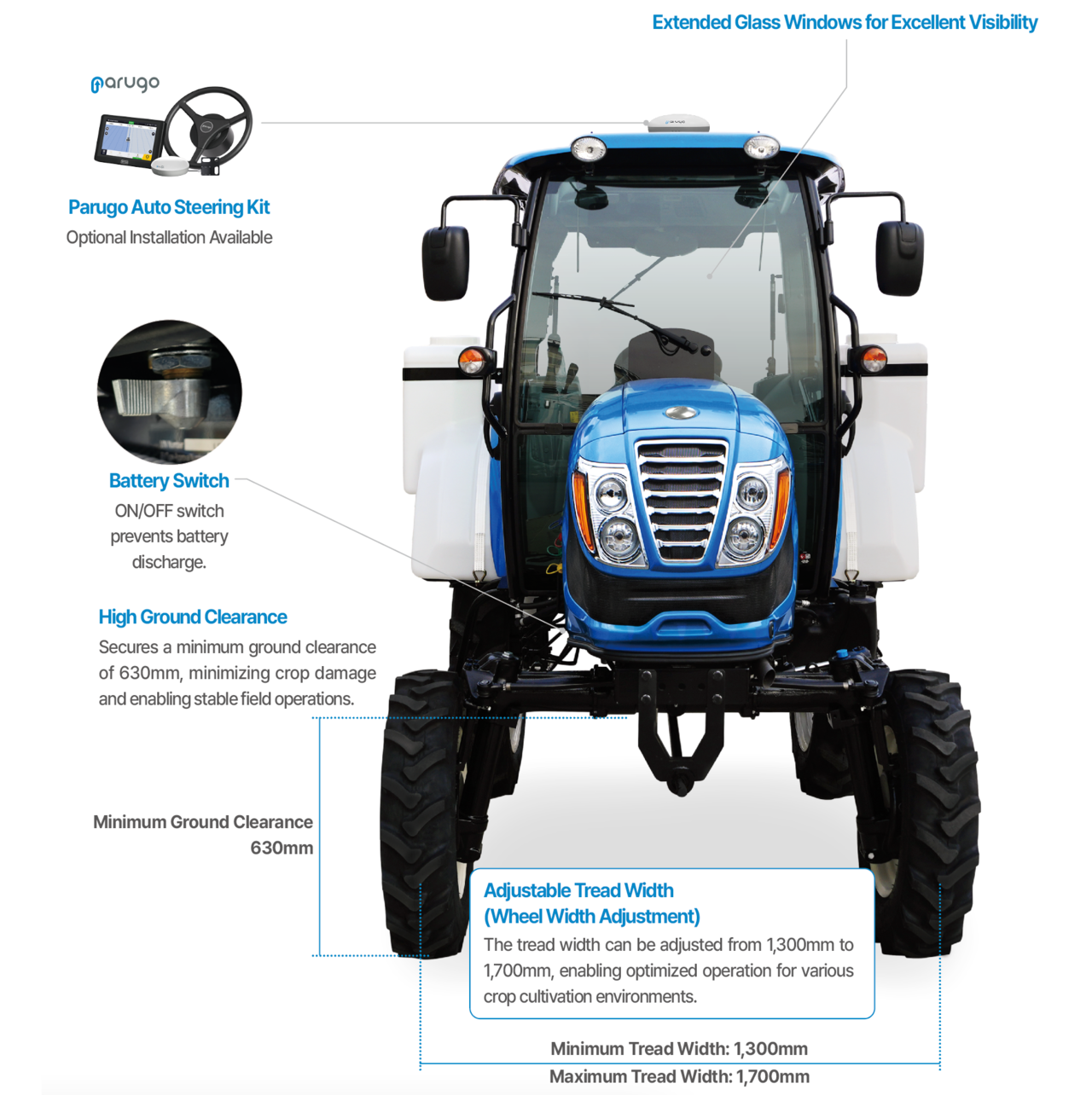

High Ground Clearance

Minimizes Crop Damage

Minimum Ground Clearance
Secured at 630mm

Narrow Tires Equipped

Minimizes Ridge Damage

Front Tire Width: 19.7cm
Rear Tire Width: 21cm

Efficient use

First in Korea

35HP!

Korea’s First
35HP Ride-on Cultivator

About

630 mm Ground Clearance!

A Riding Cultivator Designed to Minimize Crop Damage!

With a minimum ground clearance of 630 mm and narrow-width tires, crop damage during the growing season is minimized. It can travel stably between crop rows, enabling efficient operations such as spraying, fertilizer application, and various field management tasks.

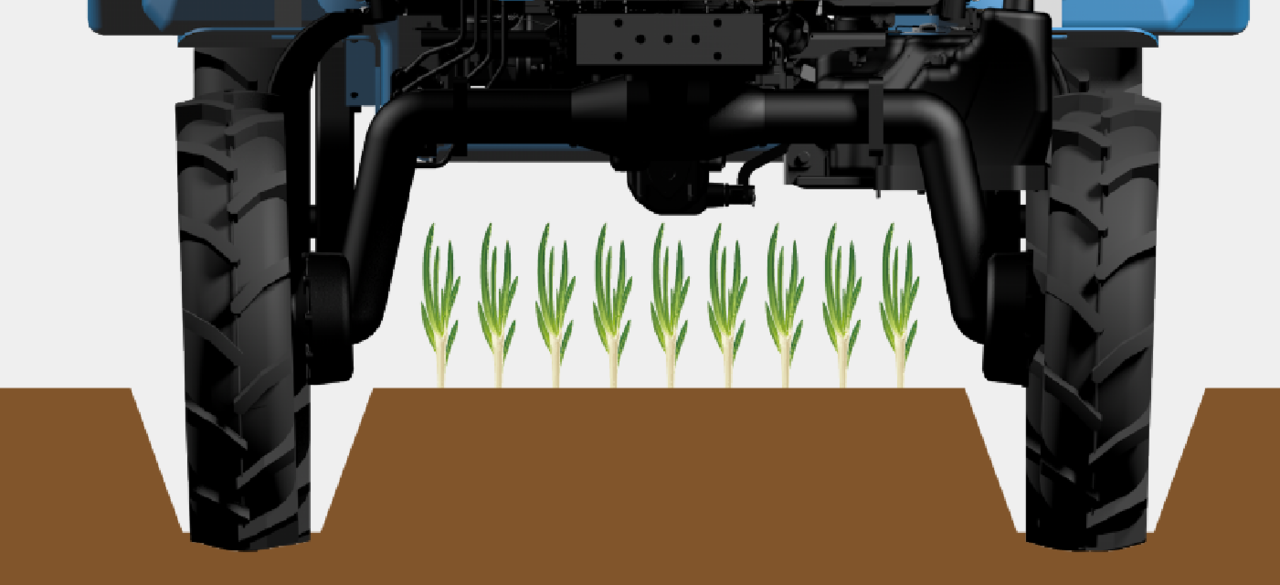

When Using HADA Ride-on Cultivator

  • Secures Minimum Ground Clearance (630mm)
    → Minimizes Crop Damage
  • Minimizes Crop Interference with Narrow Tire Width
  • Stable Operation Possible at Various Growth Stages
  • Improves Yield and Crop Quality Through Precision Management
  • Supports Various Attachments for Multi-Purpose Use

VS

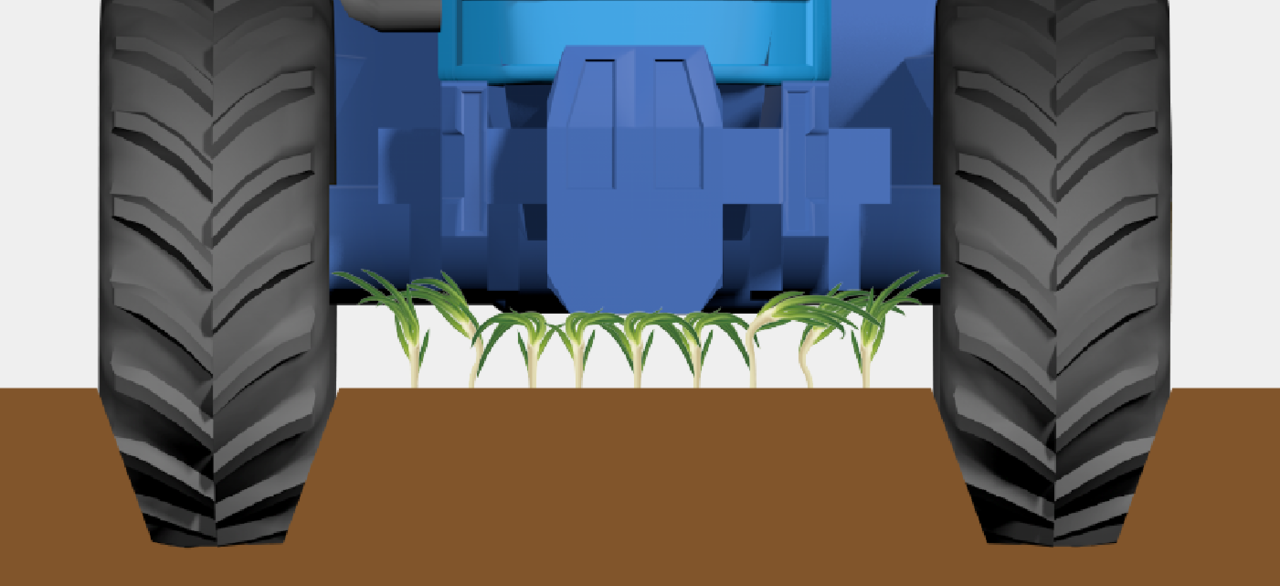

Problems When Using a Tractor

  • Low ground clearance (approx. 200~300mm) increases the risk of crop damage
  • Wide tire contact area may crush ridges or crops, causing damage and growth inhibition
  • Narrow working spaces reduce farming efficiency
  • Usability becomes limited as crops grow taller

Features

Where Powerful Performance Meets Precision Management

The Most Reliable Way to Maximize Work Efficiency

H35CT Riding Cultivator!


PC / 모바일 반응형 레이아웃

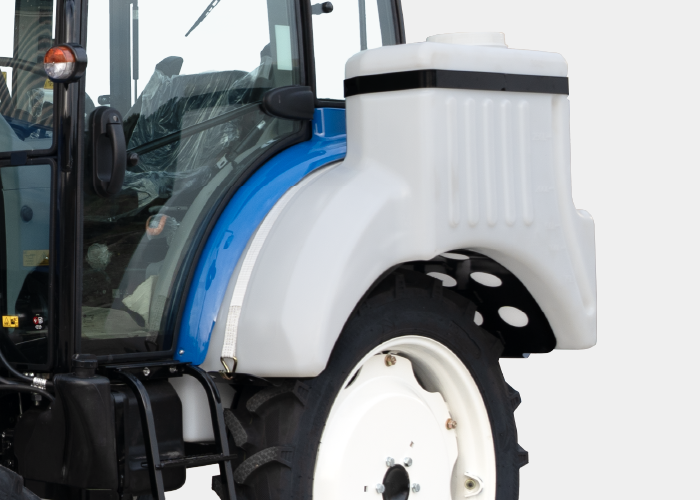

600L Large-Capacity Chemical Tank Standard Equipped
01
600L Large-Capacity Chemical Tank Standard Equipped (Mounted Above Fender)
  • Standard large-capacity chemical tank enables efficient operation with sprayer attachments such as boom sprayers
  • The left-right distributed tank design reduces rollover risk and ensures stable driving on slopes and ridges
  • Rear space remains available for mounting various implements
  • Provides secure rear visibility for safer driving
02
Narrow Tires Applied!
  • Minimizes crop interference and ridge damage with narrow tire width!
  • Front Tire : 8~18 (Tire Width 19.7cm)
  • Rear Tire : 8.8~32 (Tire Width 21cm)

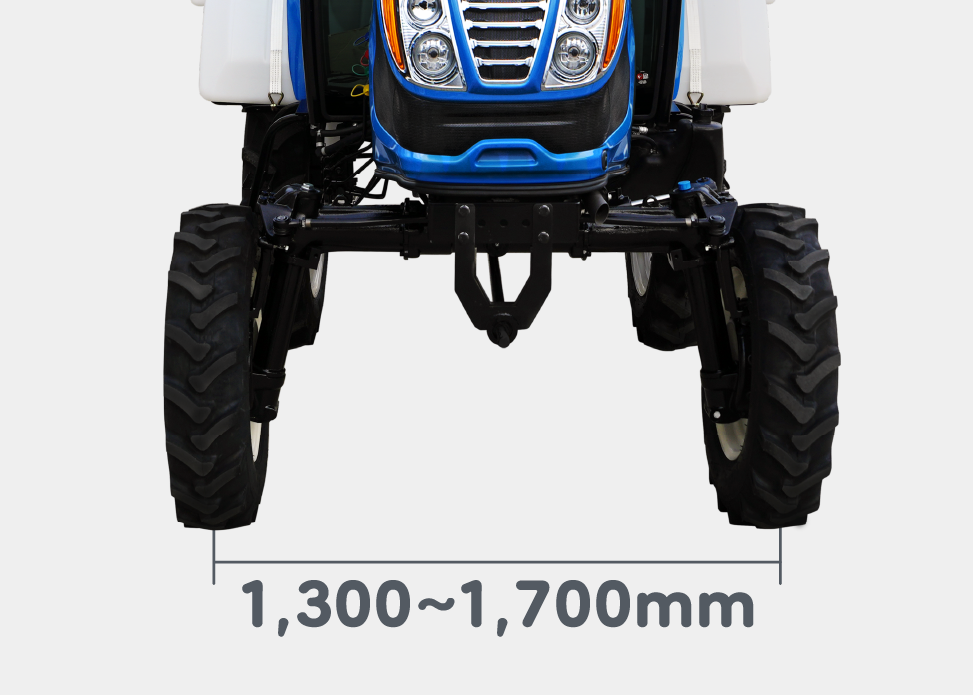

Adjustable Tread Width (1,300~1,700mm)
  • Tread width adjustable from 1,300~1,700mm for optimized operation in various crop cultivation environments
Narrow Tires

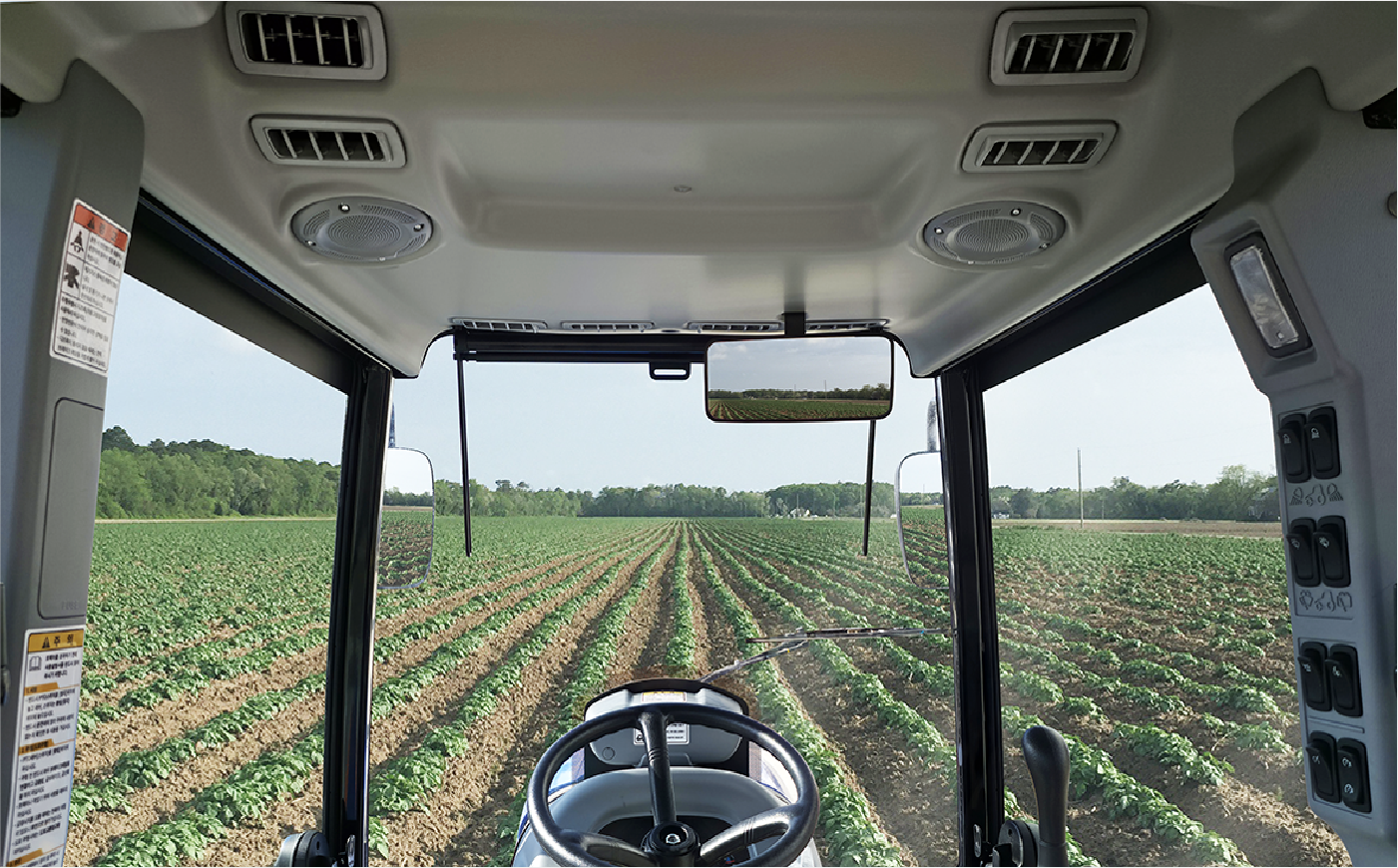

Extended Cabin
03
Extended Cabin
  • Provides a spacious and comfortable interior for a pleasant working environment.
  • Extended glass window design from the front to the sides and rear provides a wide and excellent field of view

Compatible with Various Implements

 The H35CT Ride-on Cultivator supports a wide range of farming operations through compatibility with various implements.

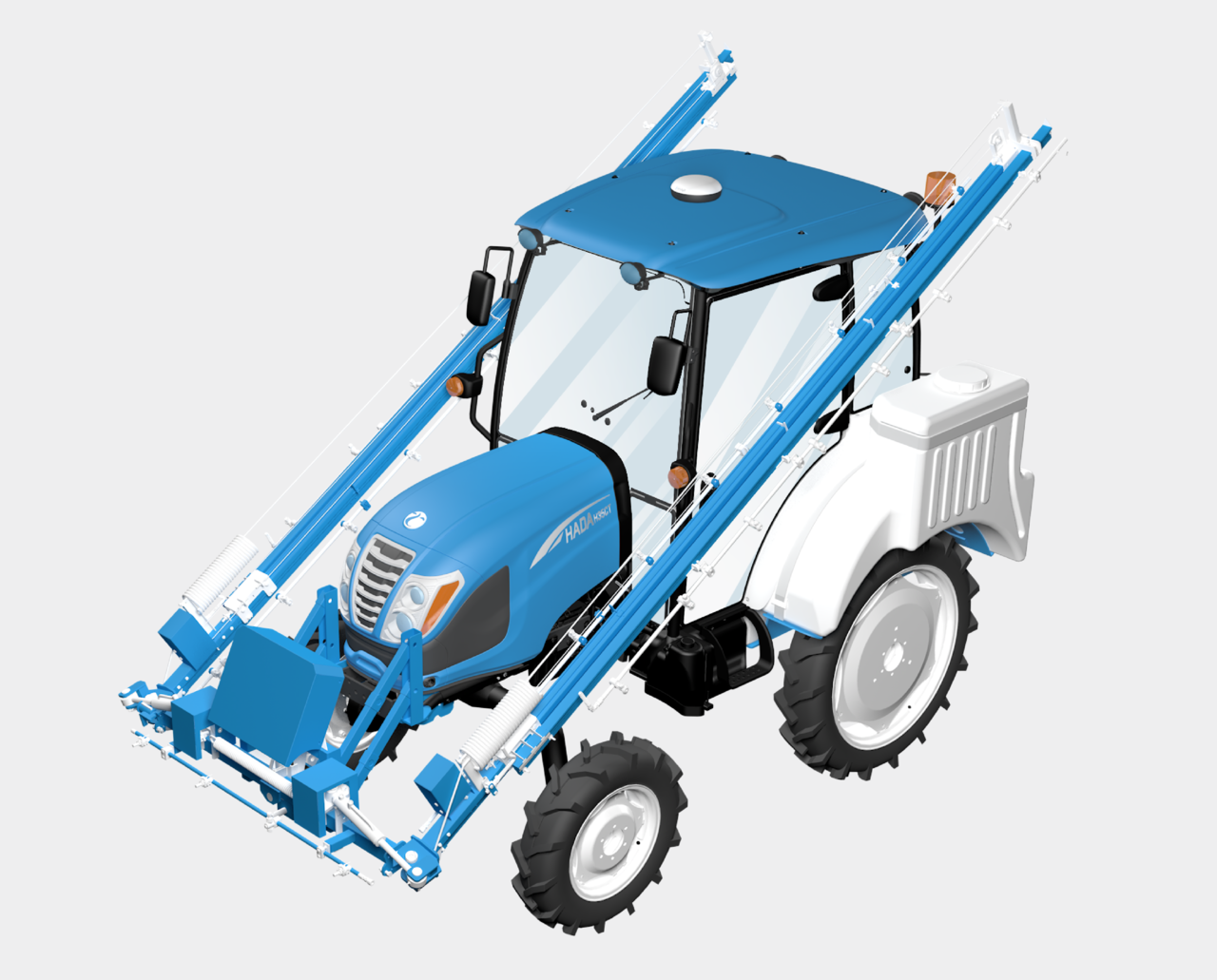

Ride-on Boom Sprayer
Ride-on Boom Sprayer

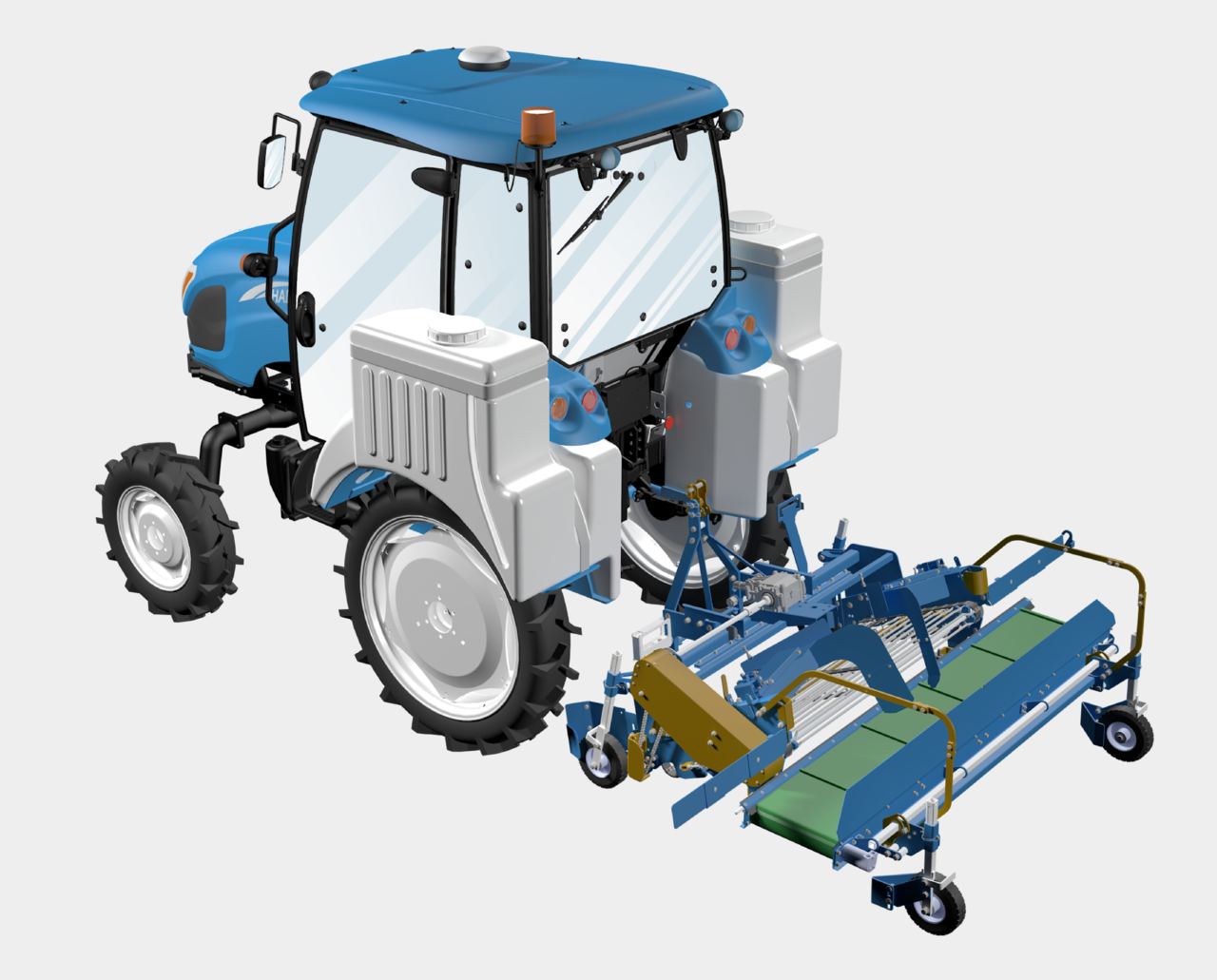

Onion Harvester
Onion Harvester

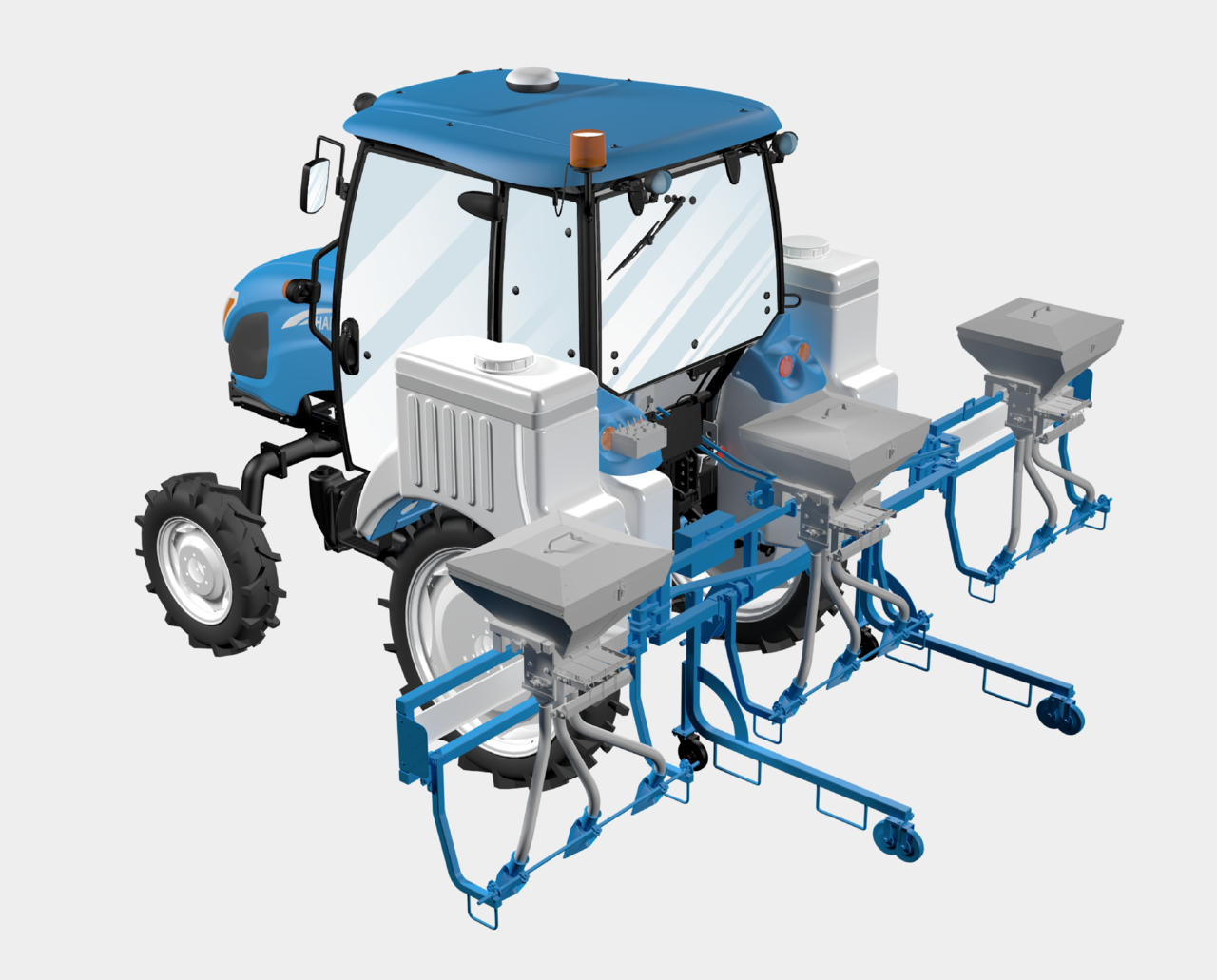

Fertilizer Spreader
Fertilizer Spreader

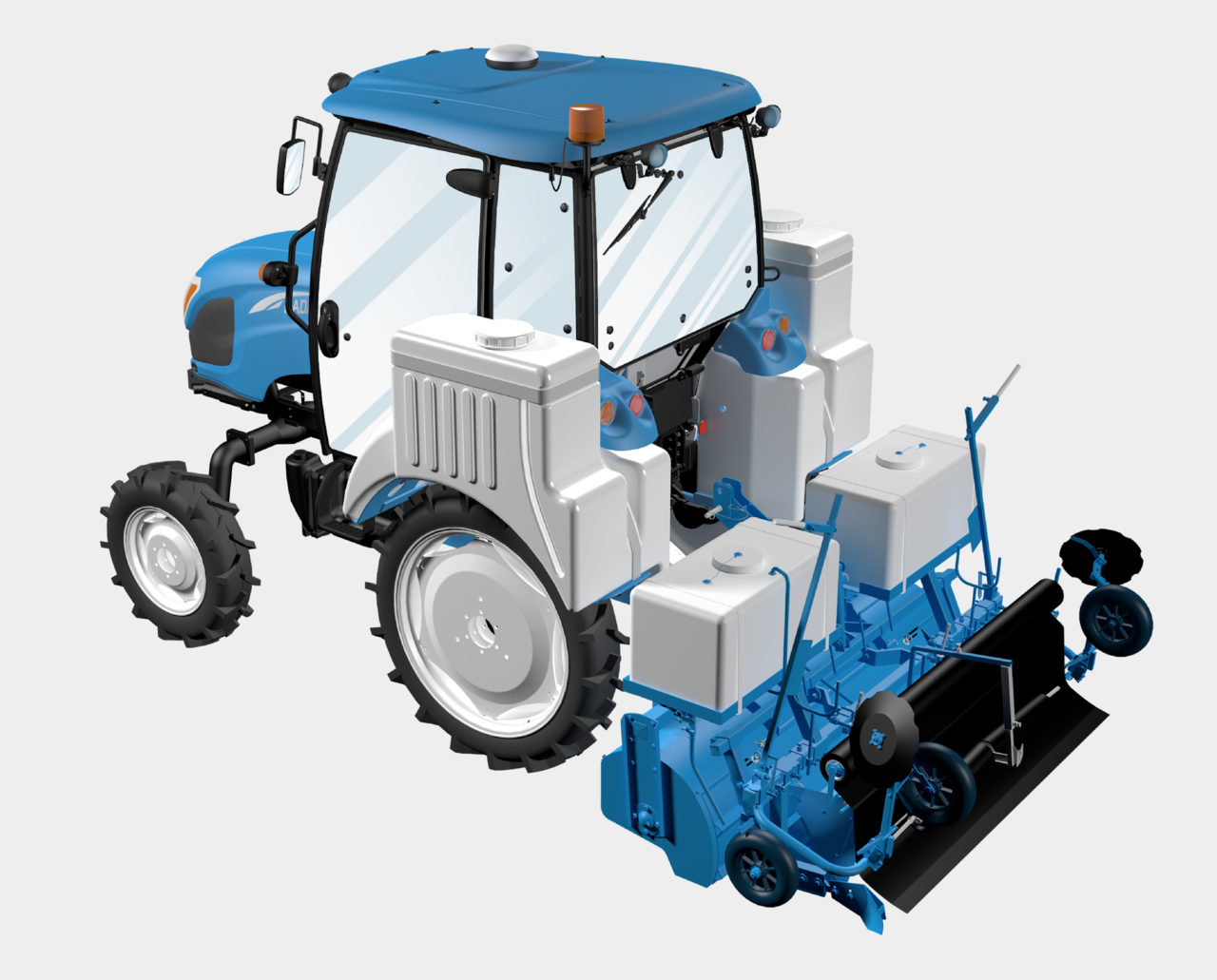

Raised Bad Mulch Layer
Raised Bad Mulch Layer

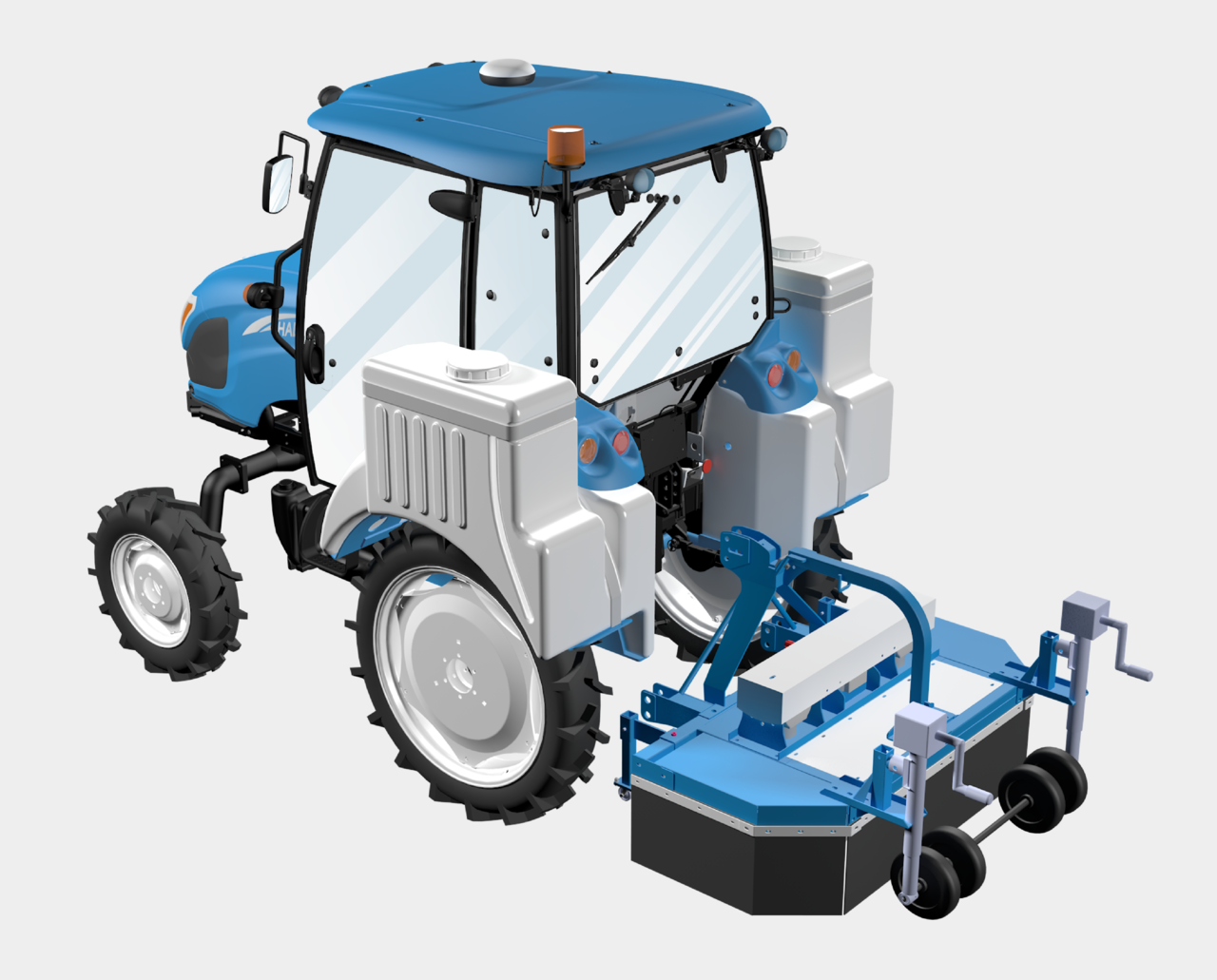

Stem Cutting
Stem Cutting

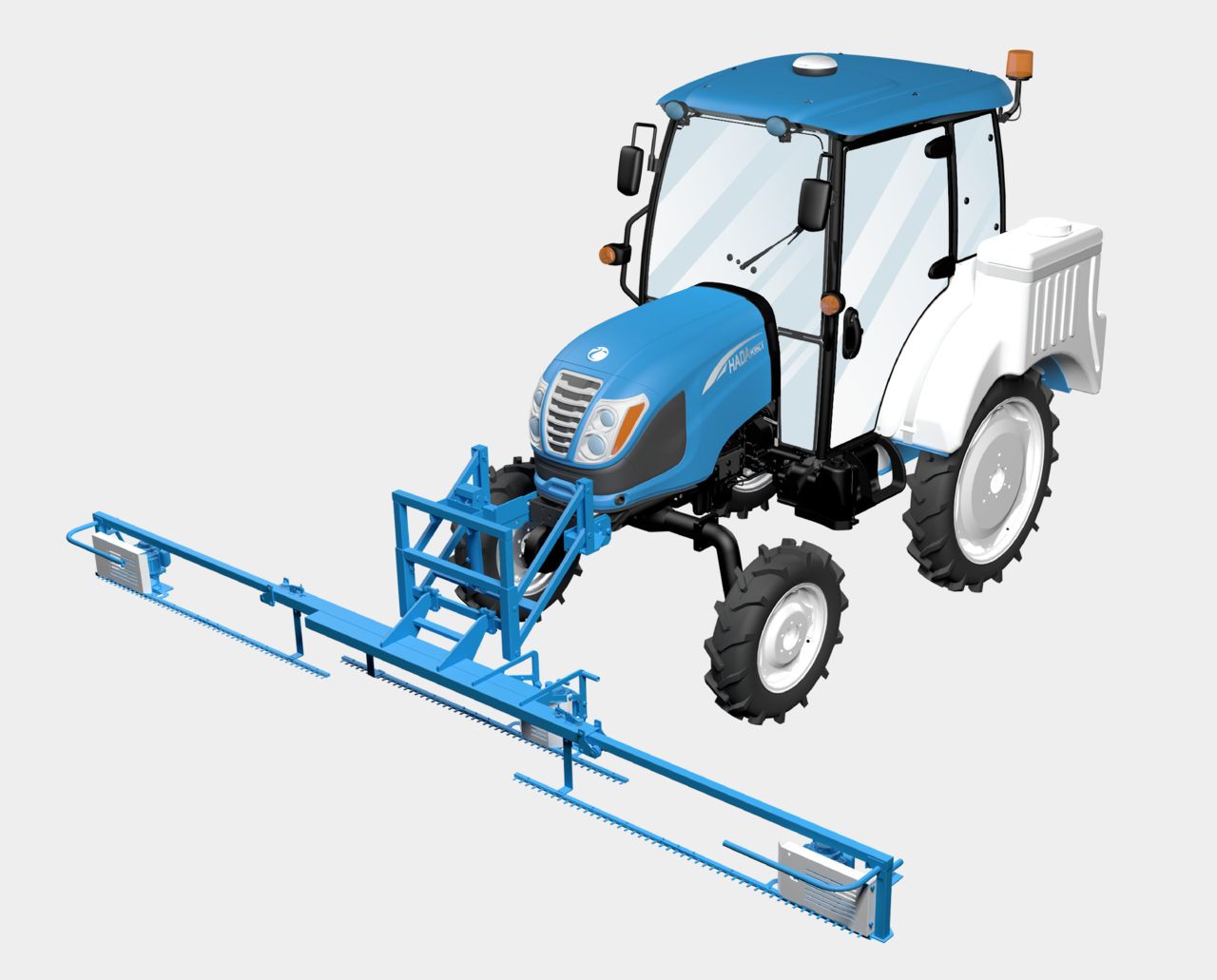

Stem cutting machine
Stem cutting machine


Provides a comfortable indoor working environment throughout all four seasons.


Provides a comfortable indoor working environment throughout all four seasons.

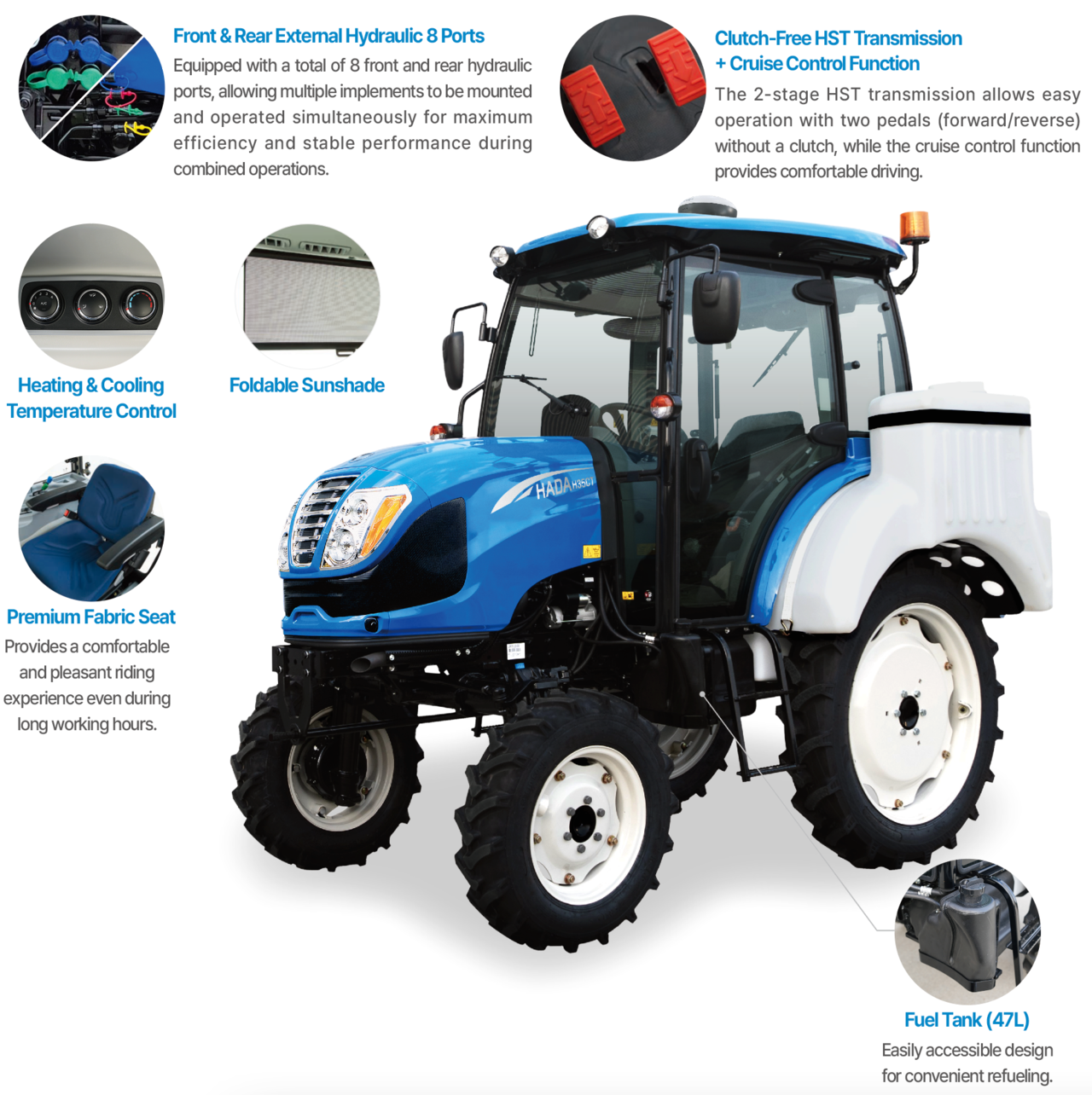

Features

Practical Operator Space!

Premium Convenience Features Included as Standard!


  • Seat suspension strength can be adjusted according to the operator’s weight, and armrests are provided as standard. The seat position can be adjusted forward and backward for comfortable operation even during long working hours.
  • Intuitively arranged right-side control panel
  • Bright visibility secured with front and rear LED work lights
  • Interior rearview mirror and left/right exterior mirrors
  • Front wiper & washer, foldable sunshade, and front/rear work lights provided as standard specifications
  • Equipped with a heating and cooling system for a comfortable cabin environment throughout all four seasons
  • Interior lighting and built-in 12V power outlet inside the cabin
  • 85A alternator
  • Radio specifications including speakers, wiring, and external antenna
  • Chemical filter designed for easy cleaning from outside
  • Rear window wiper/washer, roof-mounted rear work light, and safety warning light provided as standard
More

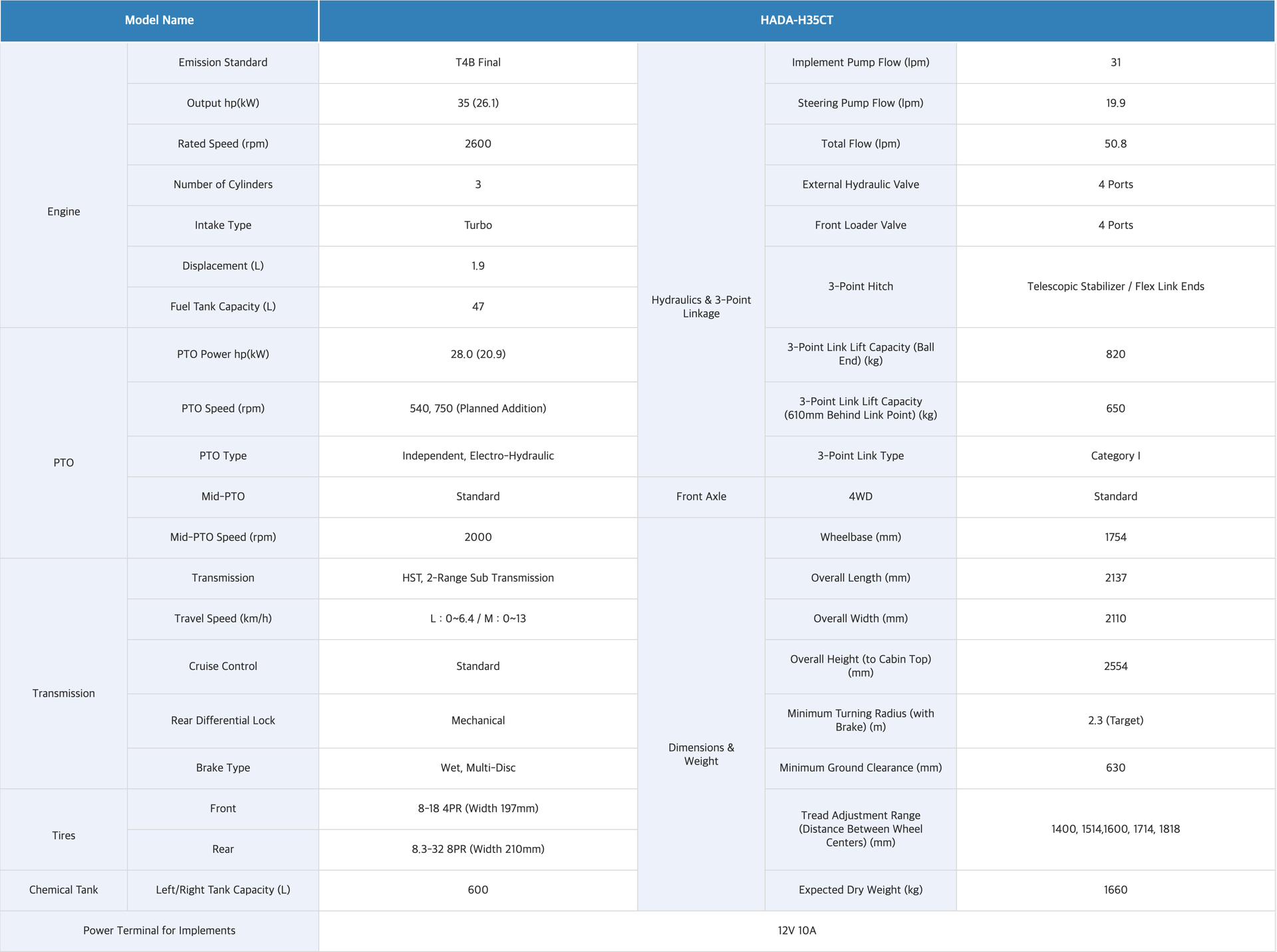

Specifications

Field-Proven Performance!
H35CT Ride-on Cultivator

Model Name HADA-H35CT




Engine		 Emission Standard T4B Final






Hydraulics & 3-Point Linkage		 Implement Pump Flow (lpm) 31
Output hp(kW) 35 (26.1) Steering Pump Flow (lpm) 19.9
Rated Speed (rpm) 2600 Total Flow (lpm) 50.8
Number of Cylinders 3 External Hydraulic Valve 4 Ports
Intake Type Turbo Front Loader Valve 4 Ports
Displacement (L) 1.9 3-Point Hitch Telescopic Stabilizer / Flex Link Ends
Fuel Tank Capacity (L) 47



PTO		 PTO Power hp(kW) 28.0 (20.9) 3-Point Link Lift Capacity (Ball End) (kg) 820
PTO Speed (rpm) 540, 750 (Planned Addition) 3-Point Link Lift Capacity (610mm Behind Link Point) (kg) 650
PTO Type Independent, Electro-Hydraulic 3-Point Link Type Category I
Mid-PTO Standard Front Axle 4WD Standard
Mid-PTO Speed (rpm) 2000





Dimensions & Weight		 Wheelbase (mm) 1754



Transmission		 Transmission HST, 2-Range Sub Transmission Overall Length (mm) 2137
Travel Speed (km/h) L : 0~6.4 / M : 0~13 Overall Width (mm) 2110
Cruise Control Standard Overall Height (to Cabin Top) (mm) 2554
Rear Differential Lock Mechanical Minimum Turning Radius (with Brake) (m) 2.3 (Target)
Brake Type Wet, Multi-Disc Minimum Ground Clearance (mm) 630

Tires		 Front 8-18 4PR (Width 197mm) Tread Adjustment Range
(Distance Between Wheel Centers) (mm)		 1400, 1514,1600, 1714, 1818
Rear 8.3-32 8PR (Width 210mm)
Chemical Tank Left/Right Tank Capacity (L) 600 Expected Dry Weight (kg) 1660
Power Terminal for Implements 12V 10A

Specifications

Field-Proven Performance!

H35CT Ride-on Cultivator
